52-Piece, Thread Pitch Gauge, Metric & Unified

Part # 09-0231THREAD PITCH GAUGE, 60 .4-7mm/55 4-42tpi
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.

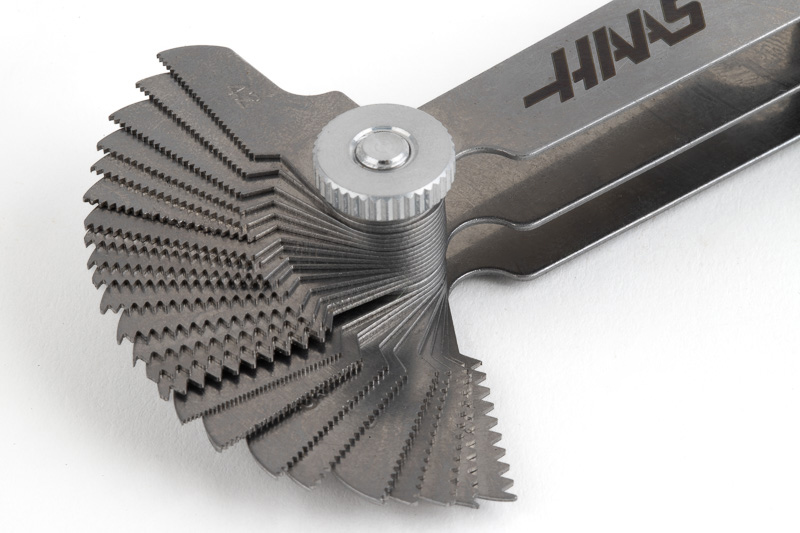

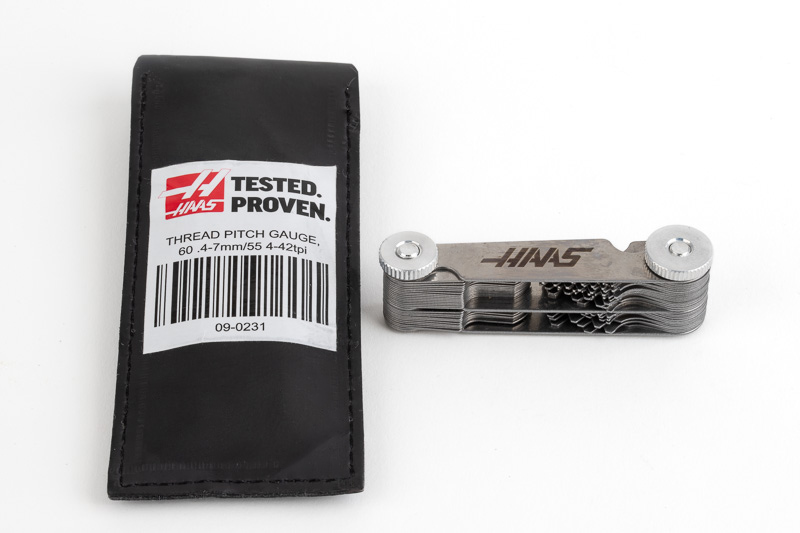

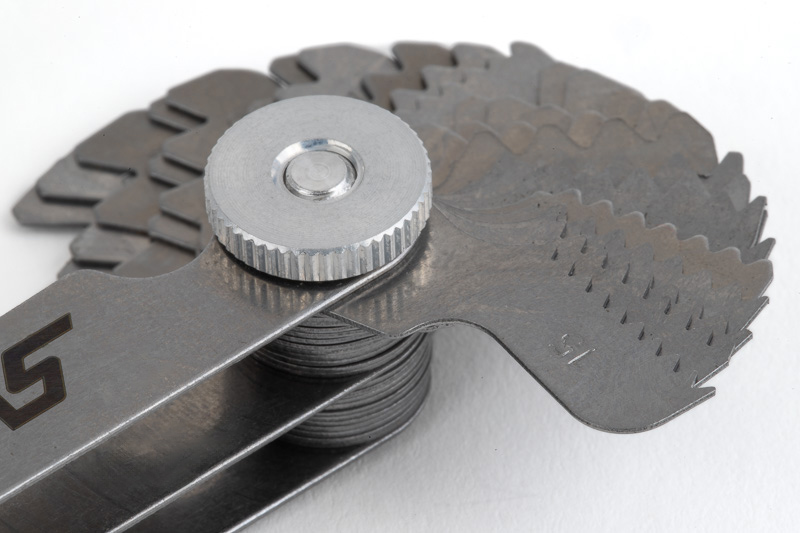

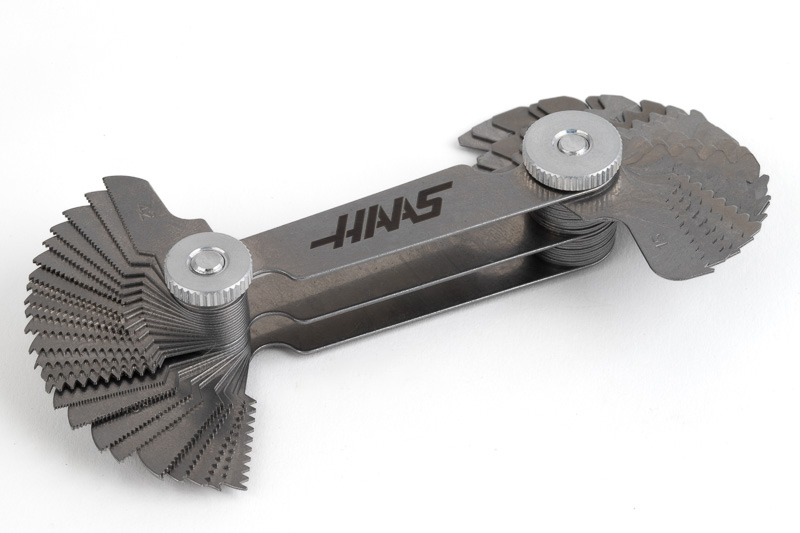

Description
This 52-piece Metric and Unified thread pitch gauge can be used to quickly and accurately identify the pitch of threaded screws, bolts, or nuts, enabling users to select the correct matching fasteners or determine thread specifications. See table below for specifications.
Technical specifications

System of Measurement

Universal - ANSI, ISO

Type

Thread Pitch Gauge

Number of Leaves

22 Metric \ 30 Unified

Thread Series

UN - Unified Natl., M - Metric, MF - Metric Fine

[TPI] Threads per Inch

4.0 - 42.0 tpi

[TP] Thread Pitch

0.4 - 7.0 mm

[θ] Angle

60°

Material

Carbon Steel

Weight

0.2 lbs \ 0.1 kg

Country of Origin

China
Technical Images

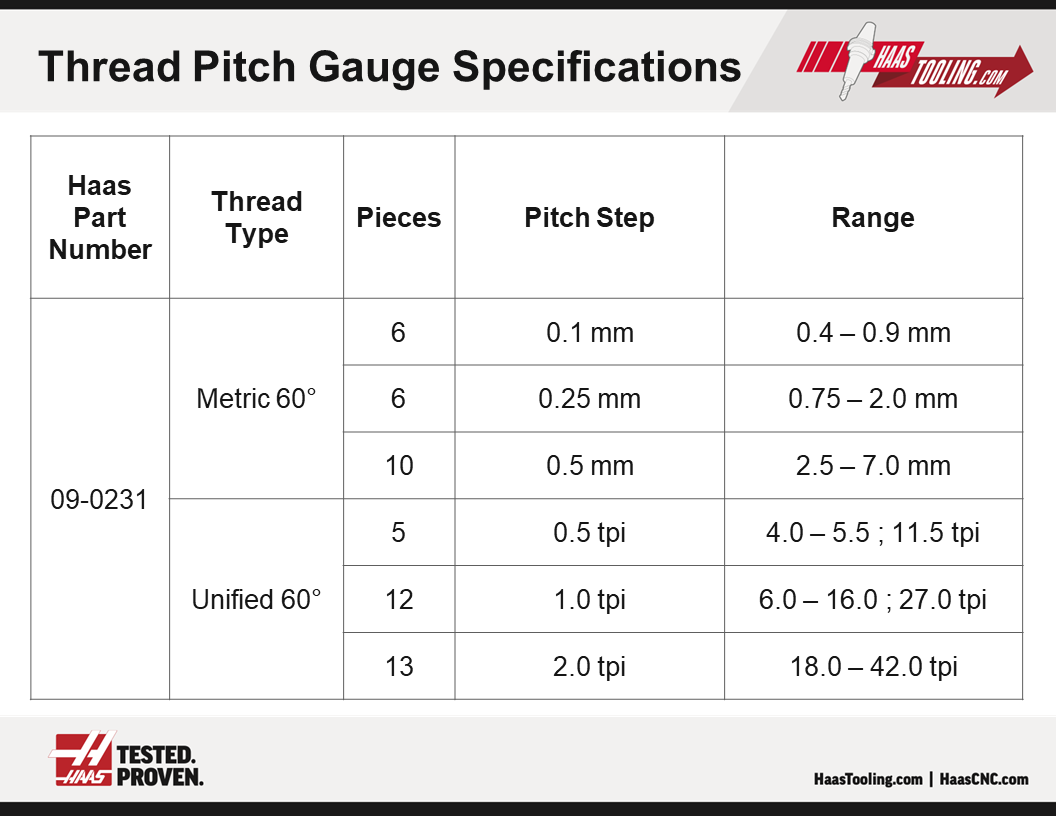

Enlarge Line Drawing & Specs
